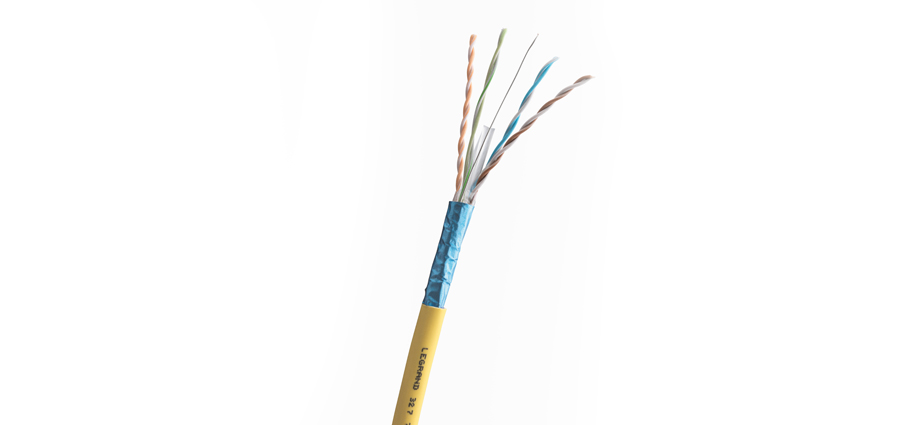

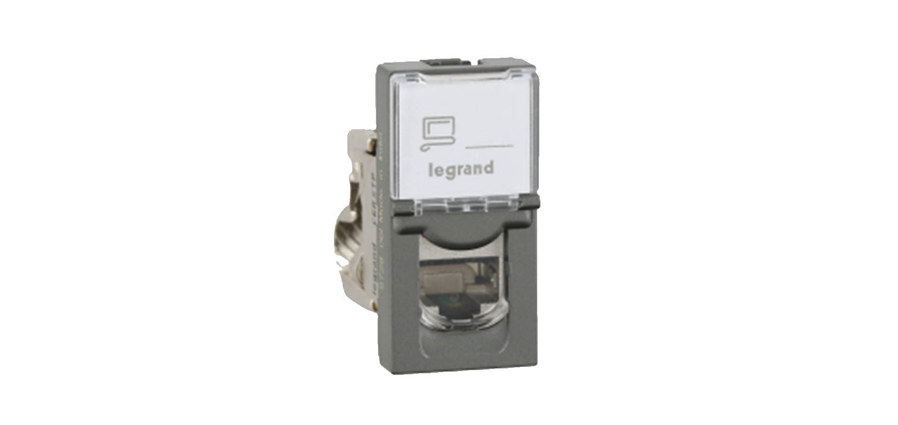

Cat. 6A LCS3 cables, cords and RJ 45 sockets Breadcrumb Home Cat. 6A LCS3 cables, cords and RJ 45 sockets Catalogue No. 032778 Cat 6A cable F/UTP - 4 pairs Length 500 m. Supplied on reel. Weight 29.2 kg Euroclass Dca Performance 500 MHz 4 pairs or 2x4 twisted pair cables, 100 Ω Yellow RAL 1018 LSZH sheath: zero halogen. ANSI/TIA colour code Compliant with ISO/IEC 11 801, EN 50173 Products conforming to the new CPR regulation (except Cat. No 0 327 87) F/UTP - 4 pairs Length 500 m LSZH Yellow VIEW IN E-CATALOGUE RESOURCES Show more Show less LCS3 Catalogue LCS3 Flyer Download All Catalogue No. 572806 Cat 6A RJ 45 sockets - Arteor – Magnesium Metal shielding Can be integrated in any support Mechanisms to be equipped with support frames and plates Equipped with connectors with quick toolless connection Take single-core cables from AWG 22 up to AWG 26, and AWG 26 multicore cables T568A and B marking with colour codes Compliant with ISO/IEC 11 801, EN 50173 VIEW IN E-CATALOGUE RESOURCES Show more Show less LCS3 Catalogue LCS3 Flyer Download All
